Yangzhou FeiHang Ship Accessories Factory

Contact Now

BR400 CBM1061-1981 Right angle type fresh water pump imported seawater filter, sea water pump right angle seawater filte

Name: BR400 CBM10611981 Right angle type fresh water pump imported seawater filter sea water pump right angle seawater filte
Brand: Fei Hang
Price: 1 USD

BR400 CBM1061-1981 Right angle type fresh water pump imported seawater filter, sea water pump right angle seawater filte Manufactures

Brand Name : Fei Hang

Model Number : BR

Certification : Inspection Report

Place of Origin : China Jiangsu Yangzhou

MOQ : 1

Price : Negotiable

Payment Terms : Advance payment and delivery

Supply Ability : 1000

Delivery Time : The 5 day

Packaging Details : Wooden box

Reference standard : CBM1061

Connection mode : Flange connection

Nominal pressure : 0.2Mpa

Mesh size : 8mm

Contact Now

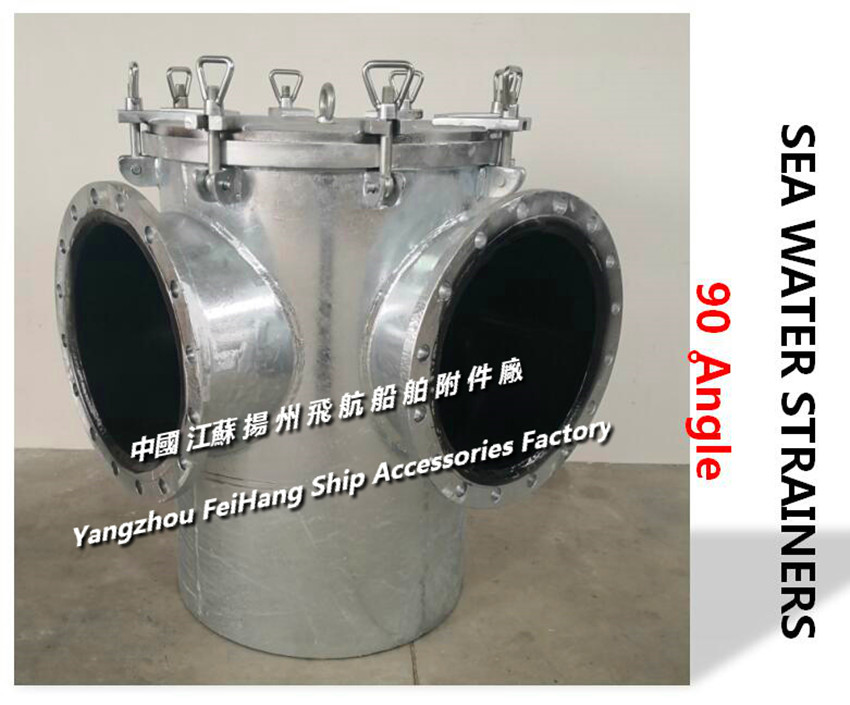

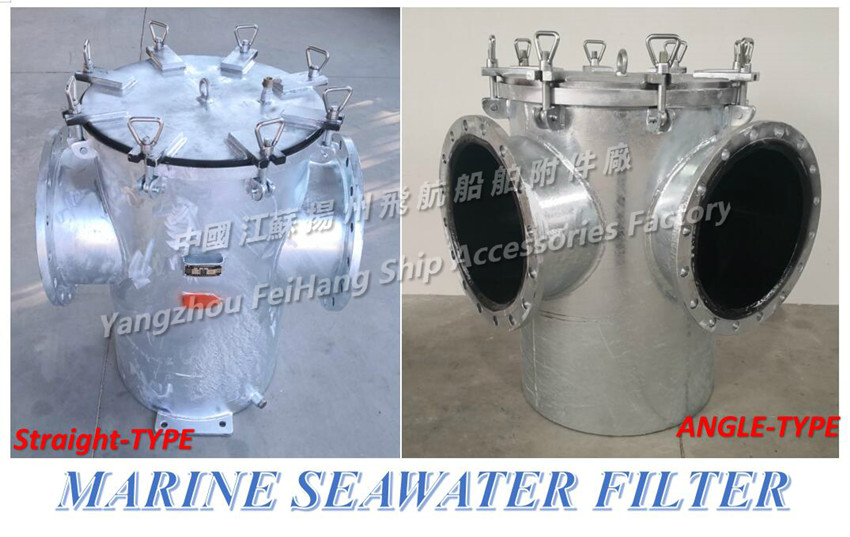

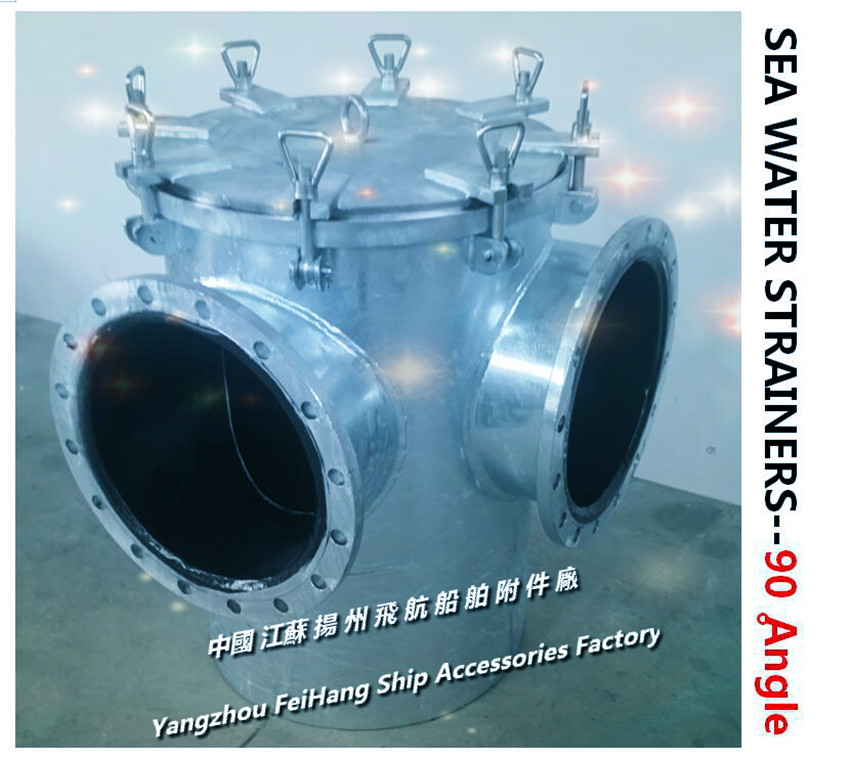

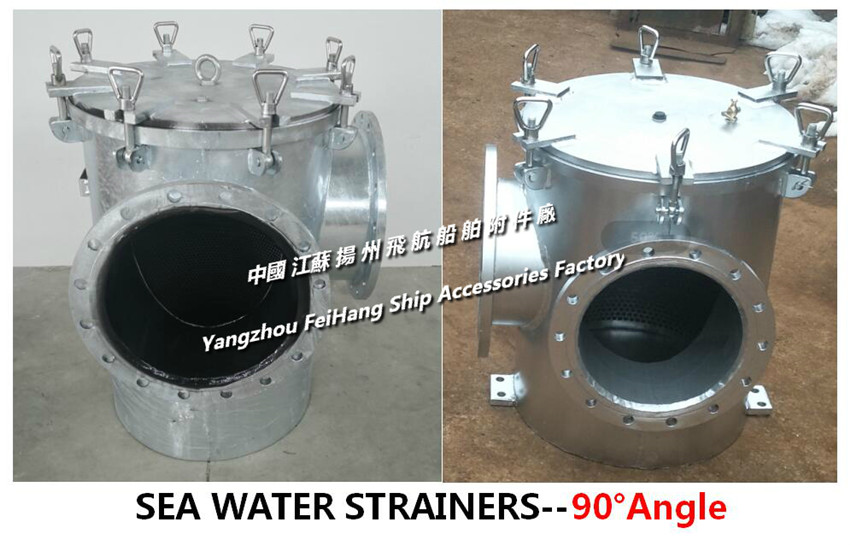

MODEL:5K-400A BR-TYPE

Right angle seawater filter - right angle cylindrical seawater filter

Applicable	Sea water/ Fresh water
Material	Body- carbon steel Filter cylinder -304 stainless steel
Thickness	12mm
Temperature	Normal atmospheric temperature
Pressure	0.2MPA
Connection	Flange connection
Nominal path	400A
Mesh	8mm
Manufacturing process	Welding
Anticorrosion treatment	Surface hot-dip galvanizing Internal --- spray
Certificate	Factory certificate

CBM1061-1981 Marine Right Angle Sea Water Filter Sea Water Strainer Summary:

90°Angle 5K-400A LB-Type Right Angle Seawater Filter
Right-angle right angle seawater filter BR 400 CB/T497-1994
Right-angled rectangular seawater filter BR400 CBM1061-1981
Imitation (JISF7121 angular Japanese seawater filter JIS 5K-400 LB-TYPE)
BL 400 CB/T497-1994 Marine Right Angle Sea Water Filter
Left-angled rectangular seawater filter BL400 CBM1061-1981
Imitation (JISF7121 angular Japanese seawater filter JIS 5K-400 LA-TYPE)

Here, we provide a brief overview of the 400A caliber CAN WATER STRAINERS:

This right angle seawater filter is suitable for seawater cooling systems and central freshwater raft systems, ballast fire protection systems, water supply/water supply systems for all types of vessels.

Yangzhou Feihang Ship Accessories Factory can customize any Sea Water Strainer for you:
contain:

DN400 straight through sea water filter, straight through type coarse water filter
DN400 right angle seawater filter, angle seawater filter
JIS F 5K-400A series direct sea water filter, right angle seawater filter
High sea bottom right angle seawater filter BR400 CBM1061-81
Low sea bottom angle sea water filter BR400 CBM1061-81
Emergency submarine door right angle seawater filter BR400 CBM1061-81
